EZ paints the 800 engine

From: "Curtis Smith" <csmith@lee-smith.com>

Subject: EZ paints the 800 engine

Date: Mon, 11 Feb 2002 11:23:33 -0500

Here's the latest installment of pics in the
"Ez" rebuilds the wrecked 800" series.......<Grin>

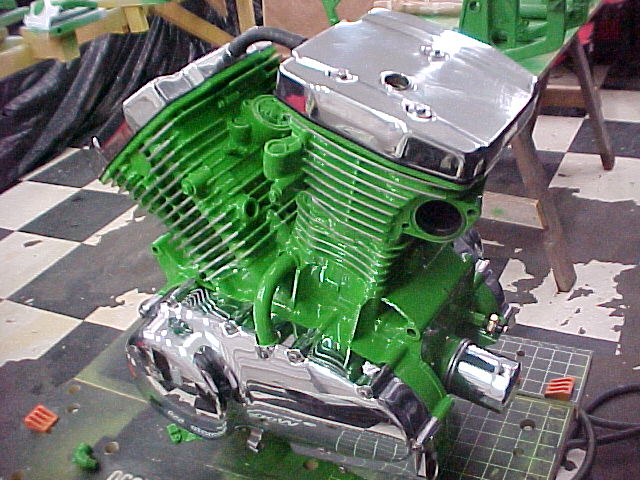

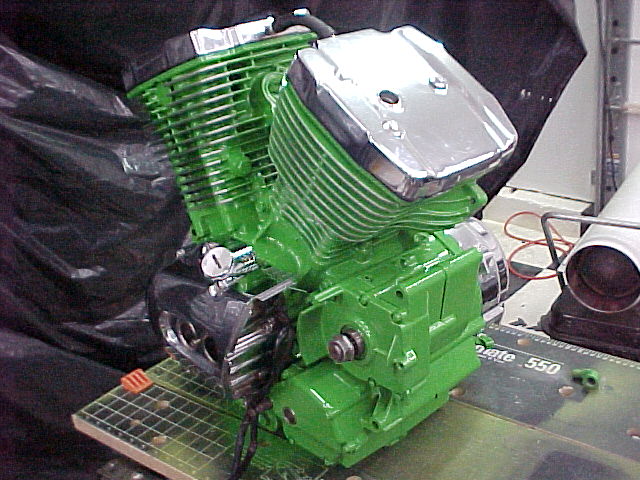

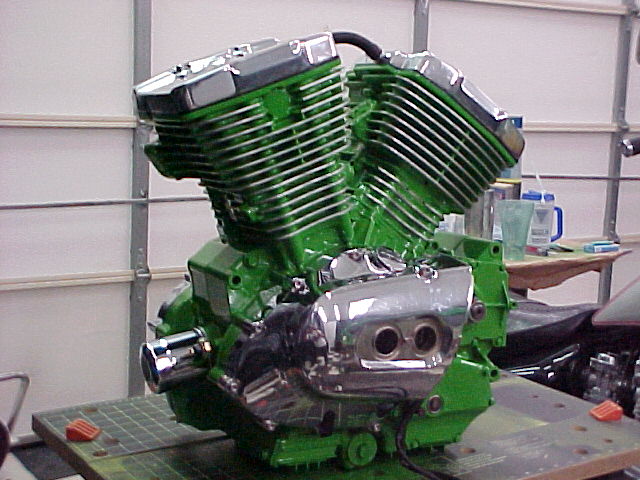

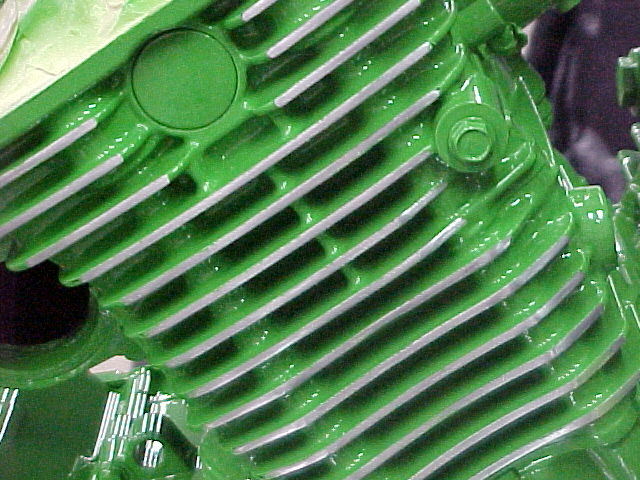

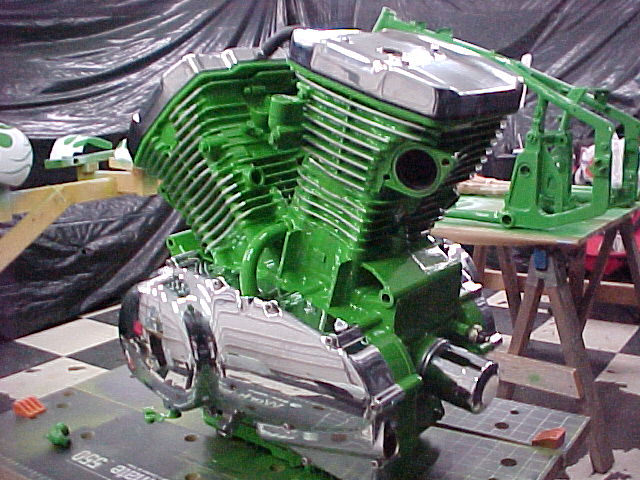

Notice the polished fins on the engine go all the
way down to the crank case now.  I flattened the
rounded edge with a grinder and made them
look like the nice shiny ones from Kawasaki.  Then
Keith spent the next 100 hours polishing them.  He
started with 80 grit sandpaper and moved to 220 grit
then 400 grit then 600 grit and finally Wenol metal
polishing creme.  They almost shine like chrome.

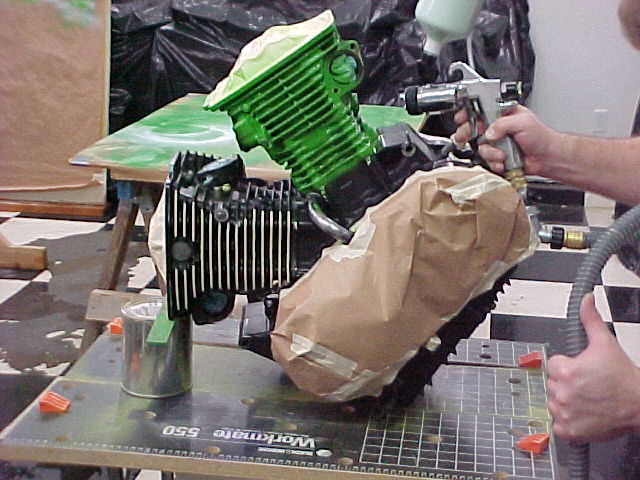

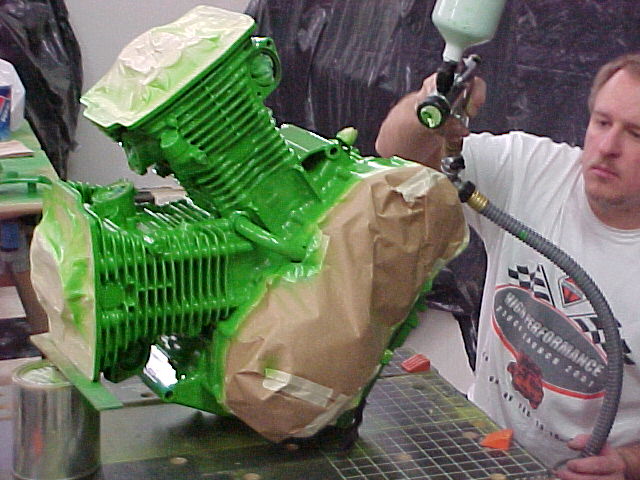

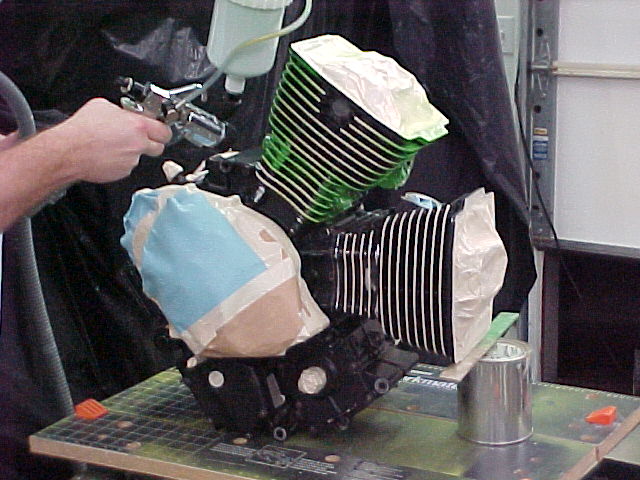

We taped up each individual fin with 1/8" fine line tape
before painting the engine.  While the paint was still
wet we removed the tape.  I think it turned out real
well.  Keith will definitely have a ride to be proud of.
Keith and Scooter and Joe have all worked a lot of
hours, disassembling, cleaning, sanding, ect.  It's
good to have friends!!!!!


Curtis "Ez" Smith
VROC#288
GA-VROC#3
GA. Chapter Secretary
2000 Yellow Flamed Vulcan Nomad
1996 Yellow Vulcan 800A Custom Bagger/Chopper
1996 Vulcan 800A Custom Chopper
1995 Vulcan 500 LTD
Ringgold, GA.
ezridr1500@aol.com

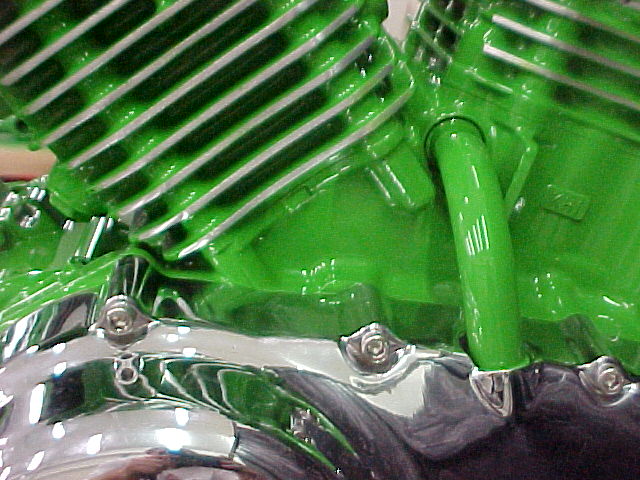

green engine close2.jpg

green engine tube3.jpg
