Here
are the pics I promised Russian Wolf on how
I
installed my Wolo air horns on an 800. You can see

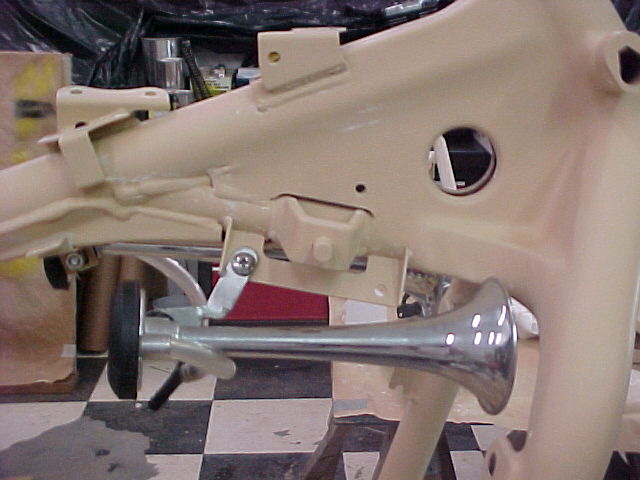

I had
to make a bracket to fit the right side horn.
I

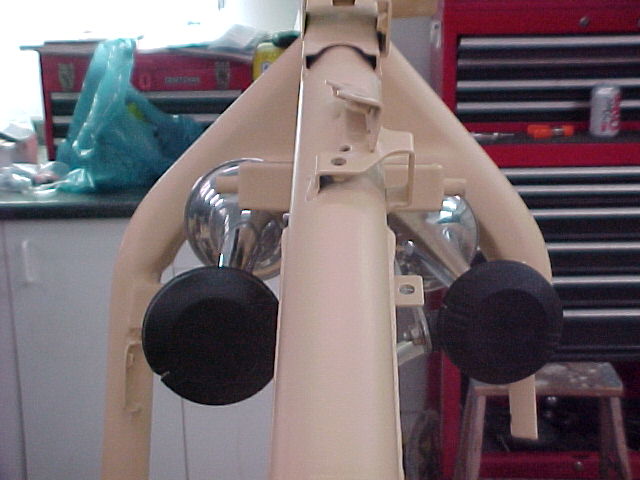

mounted the long horn on the left side and the short
horn

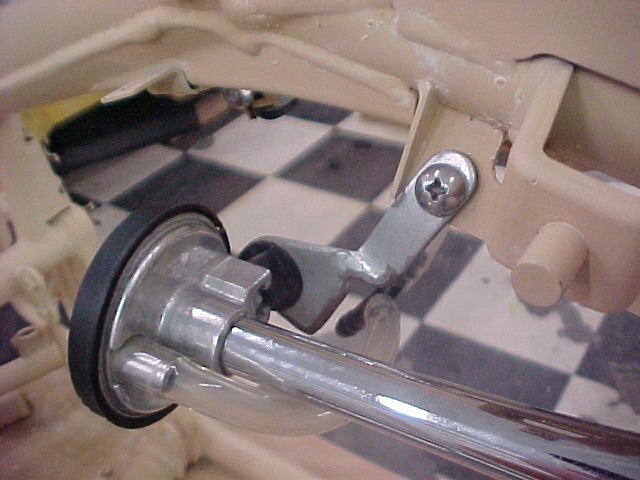

on the right side. The right side horn uses the
rear
mounting hole for the coil. I made the bracket out of
a
misc. piece of strap and shaped it with a grinder. The

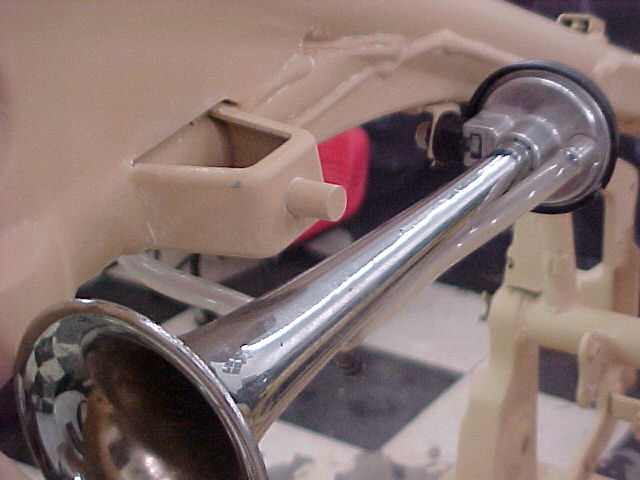

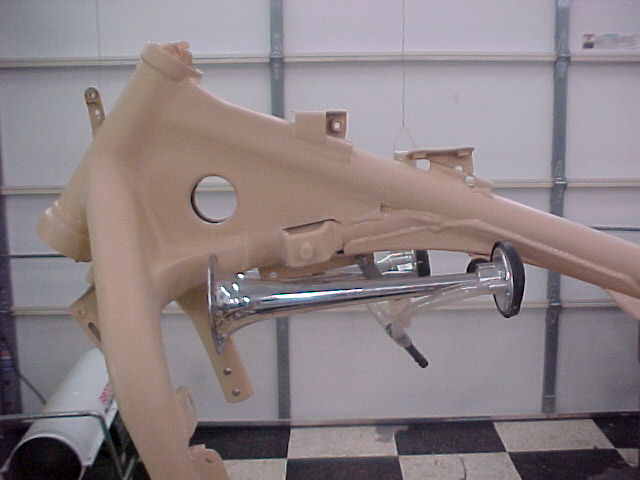

left
side horn uses a threaded hole on a factory bracket
welded
to the top frame tube.

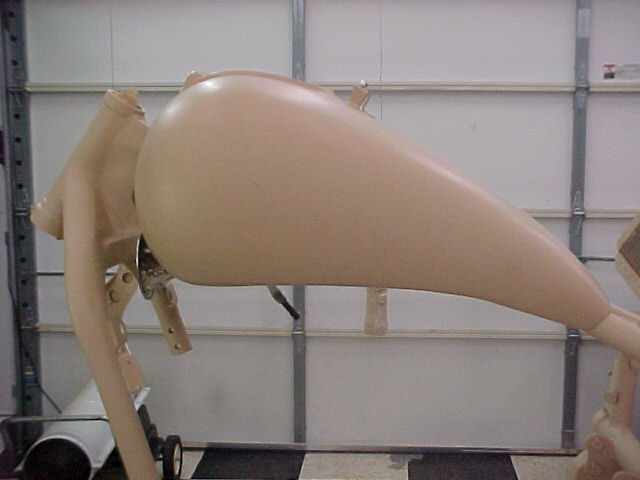

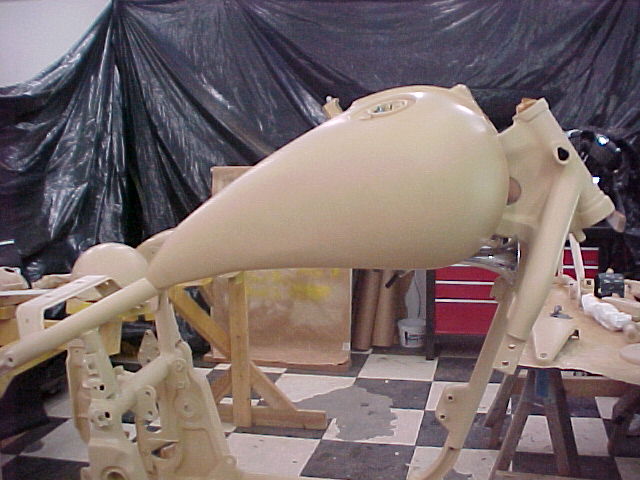

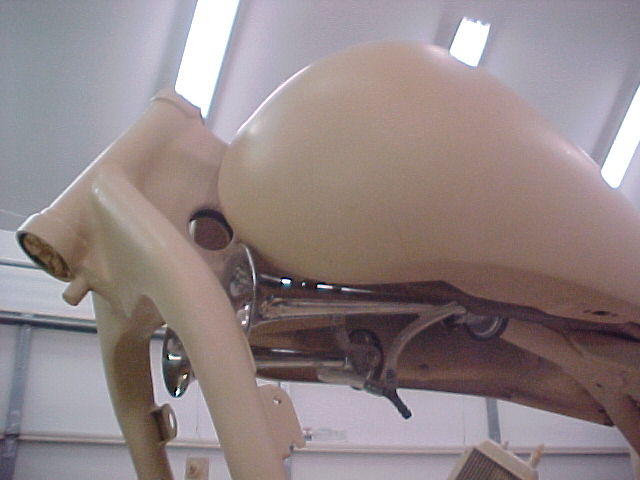

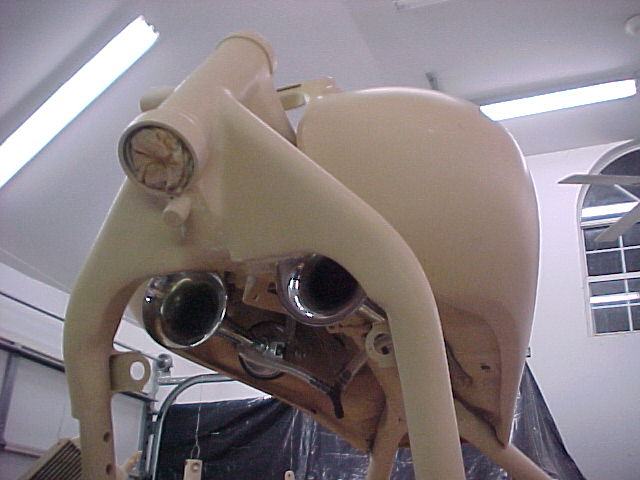

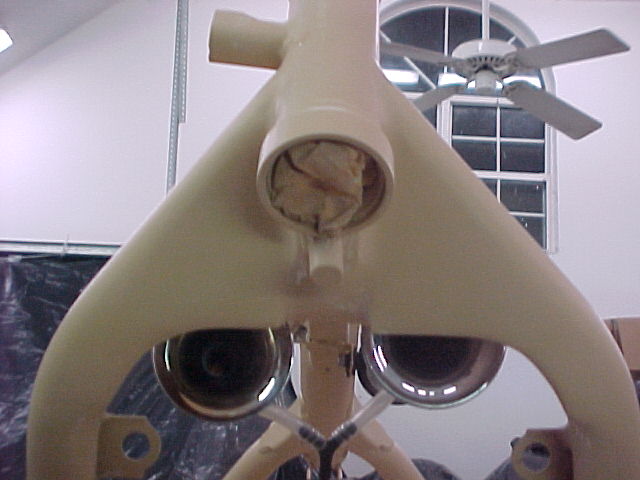

Only
the front bell of the horns show out from under the tank.
If you
are using Fiiam plastic horns you could paint them black
and
they would not show next to the black frame on the bike.
Hope
this helps!!!
"EZ" (Ezridr1500) |
