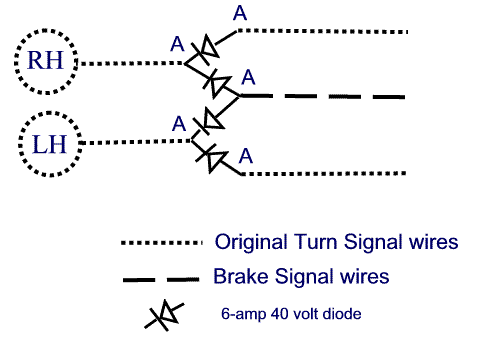

This will cause both rear turn signals to light when the rear brake is applied. The turn signal will still blink when the turn signal is activated. I have preformed this on various makes over the past twenty years. Obtain 4 6 amp 40 volt (Motorola brand is MR760 High Current Rectifier Diode, carried at Radio Shack). The diodes are connected as in the attached picture. The diodes are marked with a single paint band. This band corresponds to the line in front of the triangle in the drawing. Make good mechanical connections(twist the leads together) and then solder the diode connections. Add wire pigtails at A points. Use the same or larger gauge wire as the bike's wiring harness. This will make it easier to attach to the original wiring harness. You have to splice the rear turn signal wiring harness. I usually choose a point on the sub-harness under the seat. You can find your signal wires with a test probe, test light, etc...The brake connection can be made by joining the brake wire, it does not have to be spliced. On the older bikes, the connectors were standard bullet connectors and you could create a plugable unit. My bubf has a small non-standard connector so I cut the wires and spliced it in. Insulate the diodes after the soldering. I usually wrap the diodes in tape or heat shrink tubing, then place a piece of rubber inner tube around it. There are plenty of nooks under the seat to tuck this into (note: mounting location may determine how long the pigtails have to be). Elvis vroc #2770 vra #168a 98 1500 bubf , 76 kz900, 75 re5a
|
