First pictures of Judge's Steel Oil Pump Gear

From: "John Shreve" <jshreve@home.com>

Subject: First pictures of Judge's Steel Oil Pump Gear

Date: Fri, 13 Oct 2000 19:42:53 -0400

Here are some pictures of Judge's  Steel Oil Pump Gear.

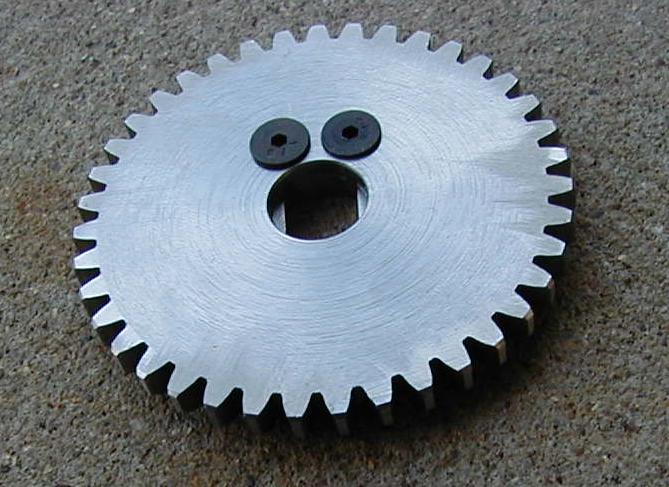

SOPG10.jpg  -  The outside view of the gear Showing the allen
                          screws that attach the gear to the keeper

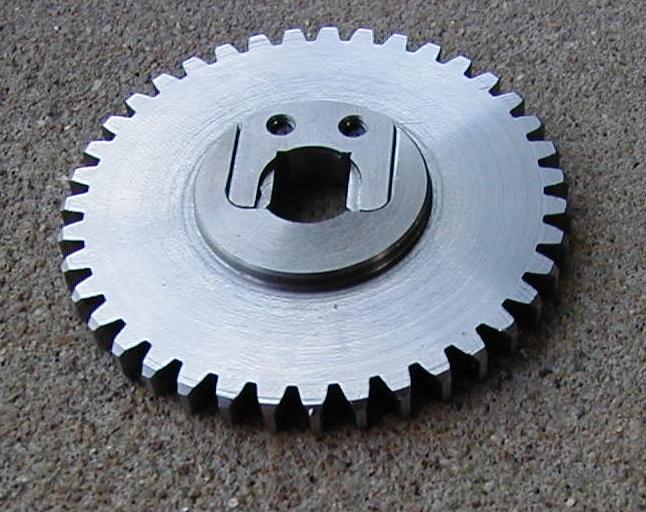

SOPG15.jpg -  The backside view of the gear showing the
                         keeper seated in the gear

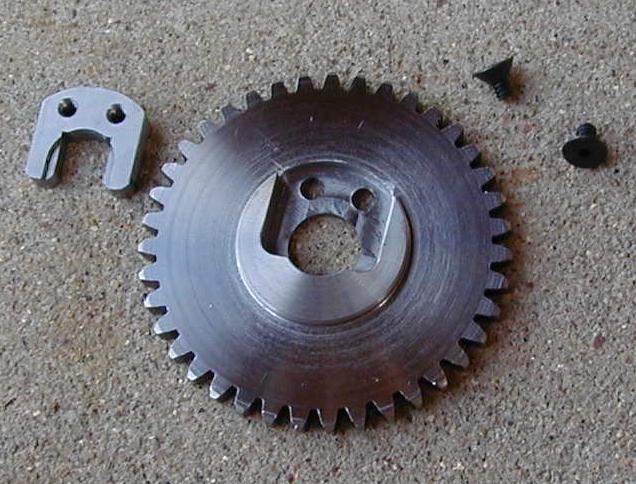

SOPG11.jpg - The kit parts separated showing the gear, keeper,
                        and screws. Note: Holes on this side of keeper
                        are not recessed

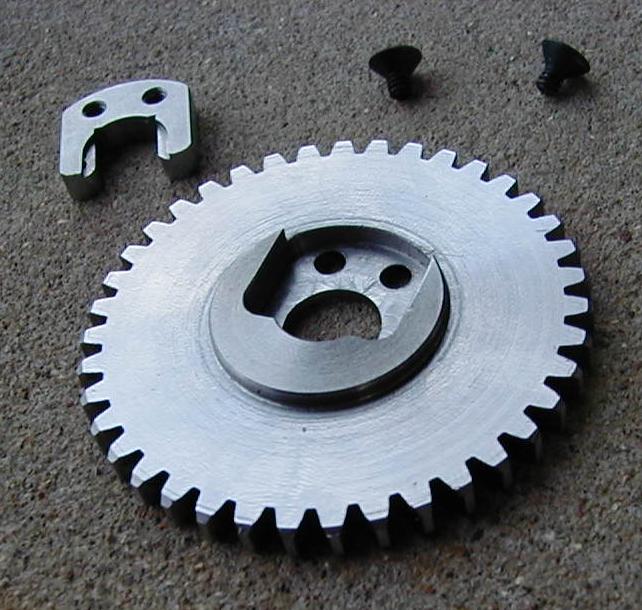

SOPG3.jpg -  The kit parts separated showing the other side of the
                       keeper. Note the recessed holes in this side of the
keeper.

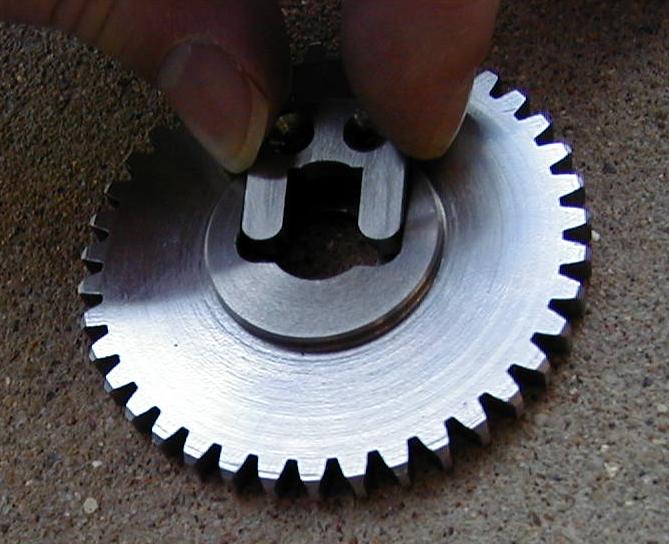

SOPG6.jpg -  Assembling the keeper into the gear.  Important note: the
                       side of the keeper with the recessed hole must be
inserted
                       toward the gear for the keeper and gear to attach
correctly.

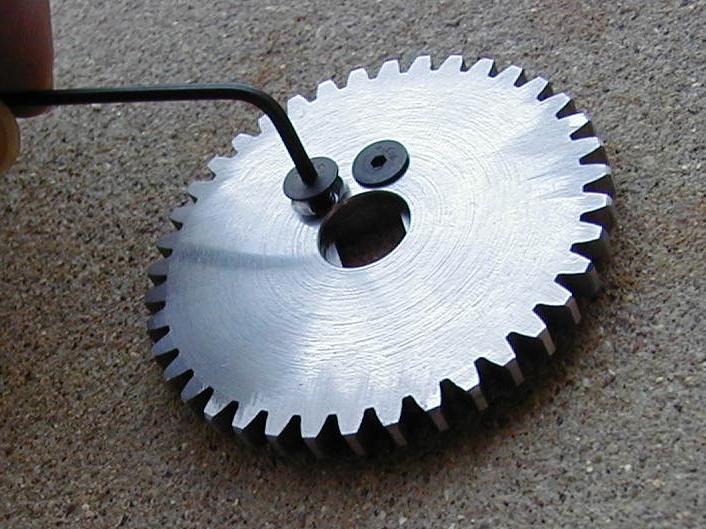

SOPG8.jpg -  Tightening the screws attaching the gear to the keeper
