Nomad Hard Bag - QUICK DETACH


  • From: "Ron Holthaus" <Ronh@ksdot.org>
  • Subject: Nomad Hard Bag - QUICK DETACH
  • Date: Thu, 1 Jun 2000 11:05:37 -0400
    This is my solution to quickly remove my Nomad Hard Bags without having to use a wrench.

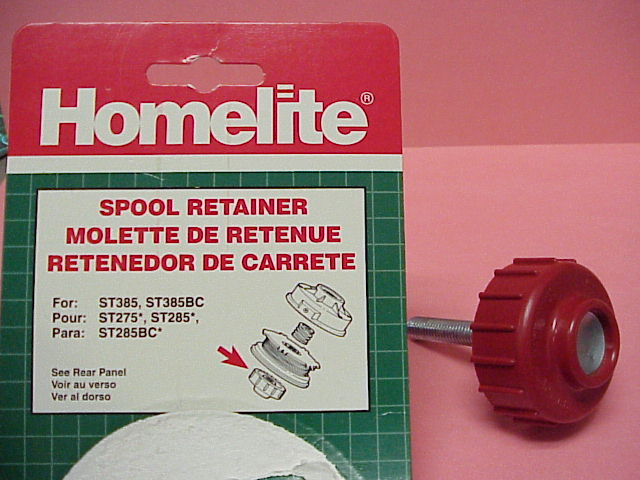

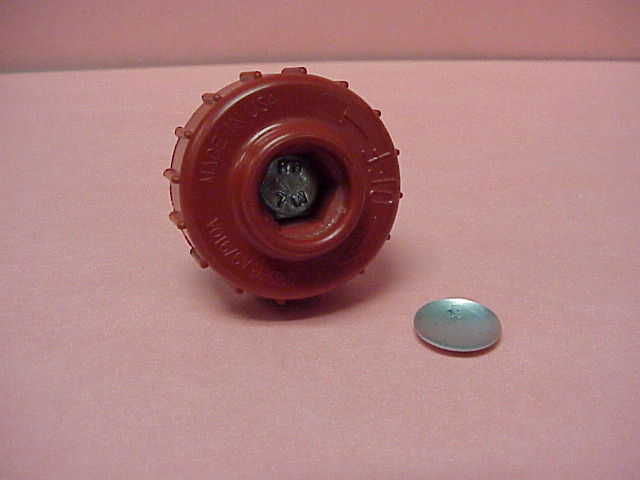

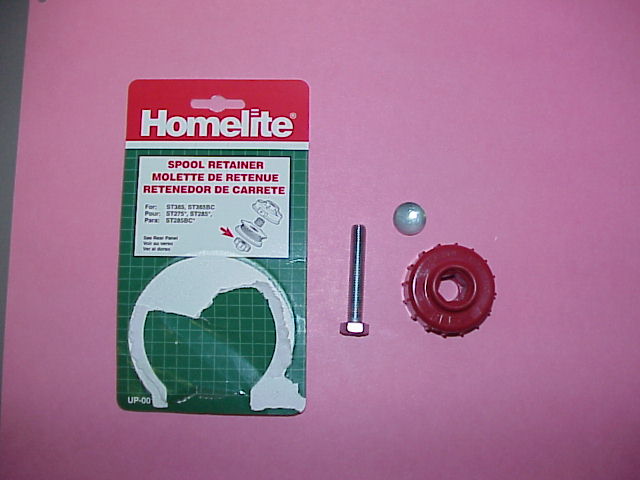

    Went to hardware store and purchased 4 - Spool Retainer Bump knobs for a Homelite trimmer (About $4 each) and 4 - 8mm bolts that were about 1/4in longer than the original. Bump knob is a Silver Dollar Sized plastic part that holds the String Spool in place on a grass trimmer.  I used the Homelite knob because they use a hex head bolt that is the same size as the 8mm bolt head. I then removed the original bolt for the trimmer knob and replaced with the longer 8mm Hard Bag Retainer Bolt.  Works great!!!!
    Now when I want to remove the hard bags, Just open bag with the key, reach
    in and unscrew the knobs and lift bag off.... No wrenches needed!!!

    RJ # 2660
